Rotary Table Type U-Drilling Special Machine
Application

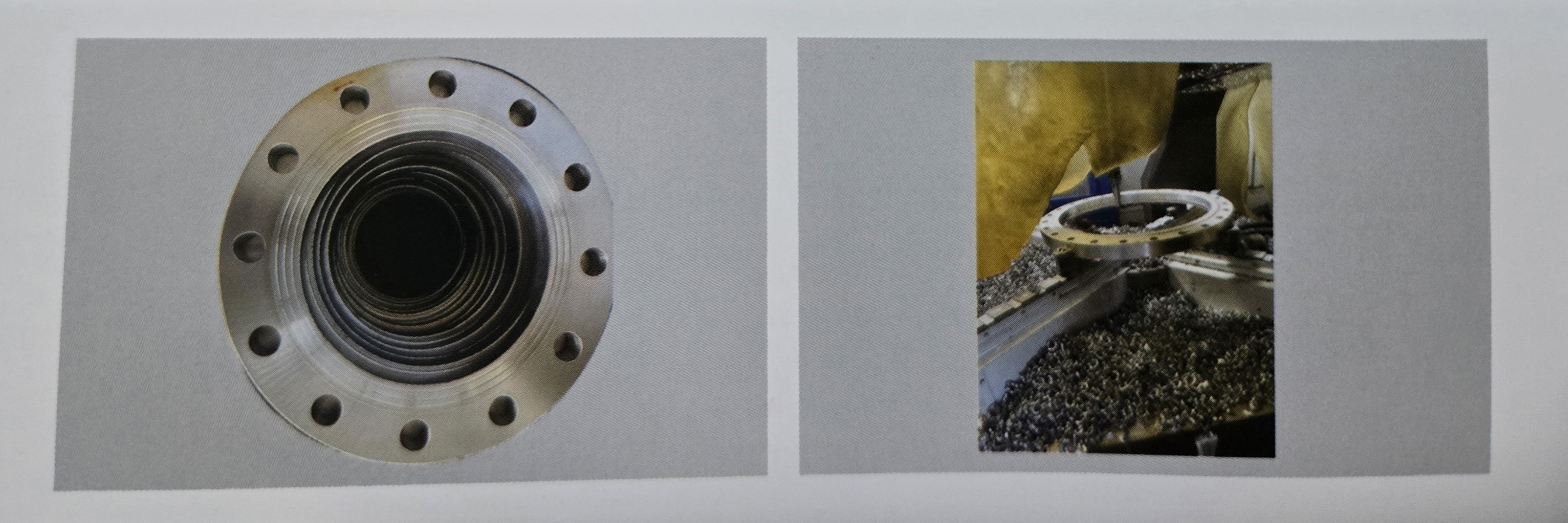

The machine tool is suitable for the processing of flange products below DN100, with high processing efficiency, reduced labor, high uniformity of processing dimensions, and easy operation.
Main features
The machine tool employs a numerical control system for control, a vertical high-speed spindle, a longitudinal slide table and a rotary table layout under the spindle. Operation is simple and fast, allowing for sequential drilling processes of multiple holes uniformly distributed on a flange with just one clamping, and it features fast processing speed, high efficiency, and labor-saving.
High processing efficiency: Controlled by the CNC system of the machine tool during the processing process, with high spindle speed and automatic feed.
Reduce manual labor: One machine is equivalent to the efficiency of three ordinary machines, and one person can operate at least three special-purpose machines.
High uniformity in processing dimensions: This machine tool fully utilizes a numerical control system for control, requiring only one tool setting to repeatedly process workpieces of the same model, thereby enhancing the uniformity of dimensions.
Easy to operate: The dedicated machine is controlled by a CNC system, and those with CNC experience or a basic understanding of machine tool processing can learn to operate it in no time.
Specifitions
| Project | Machine tool specification | YCUZ200 | YCUZ300 |
Technical
specifications | Maximum workpiece diameter(mm) | φ340 | φ460 |
| Minimum workpiece diameter(mm) | φ150 | φ280 |
| Maximum borehole diameter(mm) | φ23 | φ26 |
| X-axis travel (mm) | 120 | 120 |
| Z-axis travel (mm) | 300 | 300 |
| Machining precision | Position(mm) | φ0.4 | φ0.4 |
| Hole tolerance | +0.2/0 | +0.2/0 |
| Roughness | Ra3.2 | Ra3.2 |
| Spindle drive | Transmit | Synchronous belt | Synchronous belt |
| Spindle motor model | 200ZJY-4-4.0 | 200ZJY-4-4.0 |
| Spindle Servo motor | 4.0kw | 4.0kw |
| Numerical control system(optional) | Nanjing Huaxing CNC GuangZhou CNC Keyyuan CNC |
| Feed form | Actuating motor | 15N.m | 15N.m |
| Machine Appearance | Overall dimension of machine tool
(length x width x height) (mm) | 2150 x 1620 x 2000 | 2150 x 1620 x 2000 |
